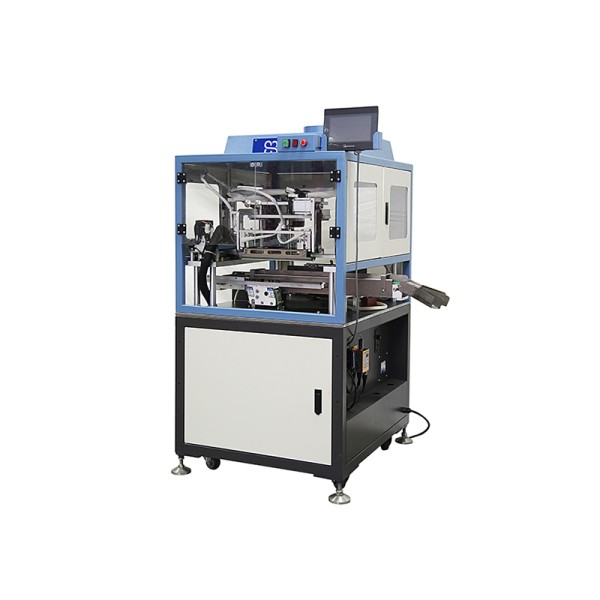

The soldering machine features an induction sensor probe to detect the solder surface, automatically measuring and recording the solder height.
The flux is stored in an external container with a valve control, and an optional automatic circulation system is available. The flux tank is divided into upper and lower sections for easy cleaning.
Solder scraping is automatic, directing excess solder to the waste solder tray.
Products are loaded manually onto the conveyor, primarily designed for soldering pins of mid-to-high-end products. The conveyor width and height can be adjusted to accommodate different product sizes, and the system can be integrated into a production line to reduce manual labor.
For small batch production with multiple product types and varying sizes, optional multi-purpose pneumatic grippers are available.
Specifications:
- Suitable for vertical and horizontal transformers, inductor coils, and E-core inductor pin soldering operations.
- Features automatic vibration feeding, automatic part picking, automatic flux application, automatic soldering (with flipping), and automatic part ejection. An additional manual fixture can be added for small orders.
- Soldering functions include adjustable soldering angle (for front/back or top/bottom winding sides), height, angle, time, pin cleaning, automatic liquid level detection, multiple flux applications, and multiple soldering passes.
- One-button start/stop functionality. The machine provides audible and visual alarms in case of faults. Basic local/online controls, including start, stop, emergency stop, and pause buttons, are provided.
- Constructed from high-quality materials for safety, durability, and easy cleaning. The solder pot and solder rake are made of lead-free titanium alloy, environmentally friendly and durable. The machine includes a solder waste collection box for easy removal and cleaning.
- Equipped with safety panels and protective doors on all sides for easy operation; a top exhaust fan is provided for fume extraction.
- Key components include a multifunctional motion controller, 7-inch touchscreen (Weinview), servo motor with stepper motor, lead screw, TBI linear guides, cylinders (Airtac/Xingchen optional), and photoelectric switches (Qili/SMC optional), all from reputable domestic and international brands.
- Machine dimensions: L960 × W680 × H1350 mm, tolerance ±20 mm.
