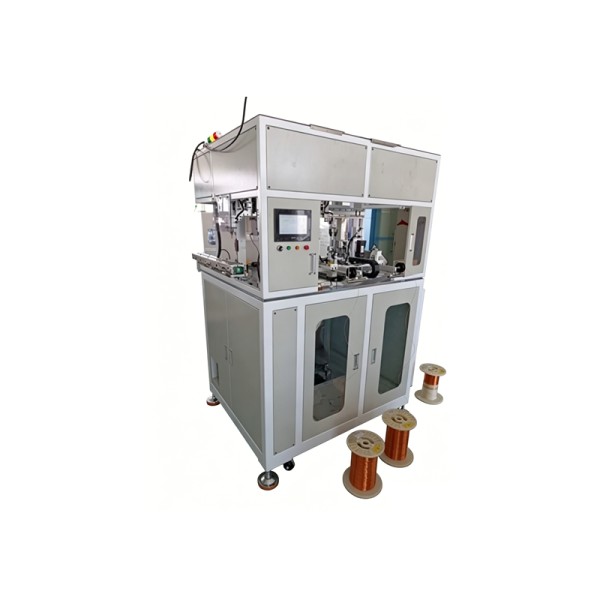

1. This machine is mainly applicable for producing the following products:
★ Suitable for traditional common mode choke winding; the winding is single or double strand enameled copper wire.
★ Maximum winding wire length within 1250mm, wire diameter between 0.6-2.5mm.
★ Magnetic core compatibility range: Outer diameter D18-45mm, magnetic core height 4-25mm.
★ Machine production efficiency: Related to factors such as number of winding turns and wire diameter. Taking magnetic core T25*15*8 as an example, common mode choke with 1.2mm wire diameter, 20 turns per side, production capacity is approximately 120 pieces per hour.
2. Machine structure and characteristics overview:
★ The machine uses belt-type chute feeding (or centrifugal disc automatic sorting and feeding).
★ The machine automatically loads magnetic cores; automatically feeds and cuts wire; automatically winds; after winding, products are automatically discharged into the finished product bin.
★ The machine uses hook-type winding.
★ The machine intelligently monitors the automatic production process. In case of abnormality, the machine will automatically stop and automatically indicate the cause of the fault.
★ Other parameters: Power supply: 220V; Air source: 0.5-0.6Mpa compressed air. Equipment power approximately 0.8Kw, weight approximately 450KG. ★ Machine dimensions: 1280x1050x1900 (length x width x height, mm).
