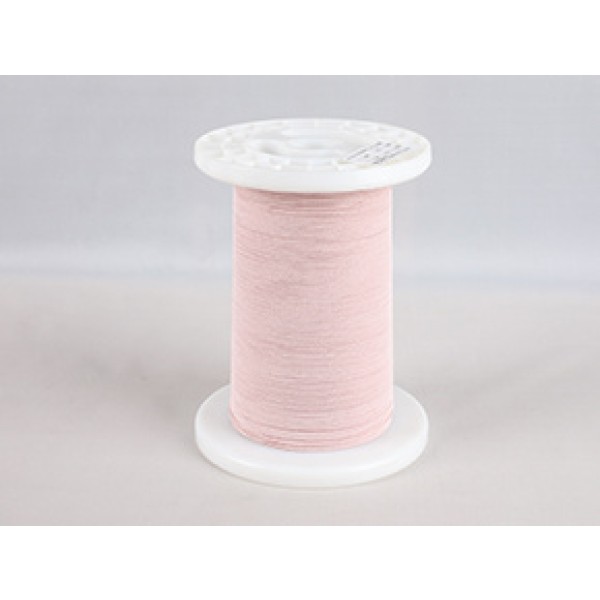

Silk-covered enameled stranded wire

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Hangzhou Weifeng Electronics Co., Ltd.

Enter Shop

Product Details

Silk-covered wire is an insulated wire that wraps one or more layers of insulating fibers (nylon, polyester fiber, natural silk, self-adhesive silk, etc.) around a single enameled wire or a stranded enameled wire.

Single wire diameter (mm)	0.03-1.00
Number of strands	2-6000
Maximum outer diameter (mm)	10
Insulation class of enamel film	Class B/Class F/Class H
Enamel film type	Polyurethane
Enamel film thickness	1UEW/2UEW/3UEW
Stranding method	Single twist / Multiple twist
Twisting direction	Forward (S) / Reverse (Z)
Twist pitch	20-130mm
Silk layer type	Polyester fiber / Acetate silk / Hot melt wire
Silk color	White / Red
Voltage withstand (V)	>2200
Number of silk layers	1/2/4
Spool specification	PT-4/PT-10/PT-15
Features	In addition to the same characteristics as enameled stranded wire, silk-covered wire has the features of stable shape and good impregnation effect, and the breakdown voltage can be increased by 500~1200V.
Applications	High-frequency transformers and inductors, electric vehicle charging stations, photovoltaic inverters, photovoltaic energy storage, high-power LED lighting, LCD TVs, ultrasonic equipment, high-power high-frequency transformers, mobile phone wireless charging, etc.
Product certifications	ISO9001/ISO14001/IATF16949, UL/RoHS/REACH
